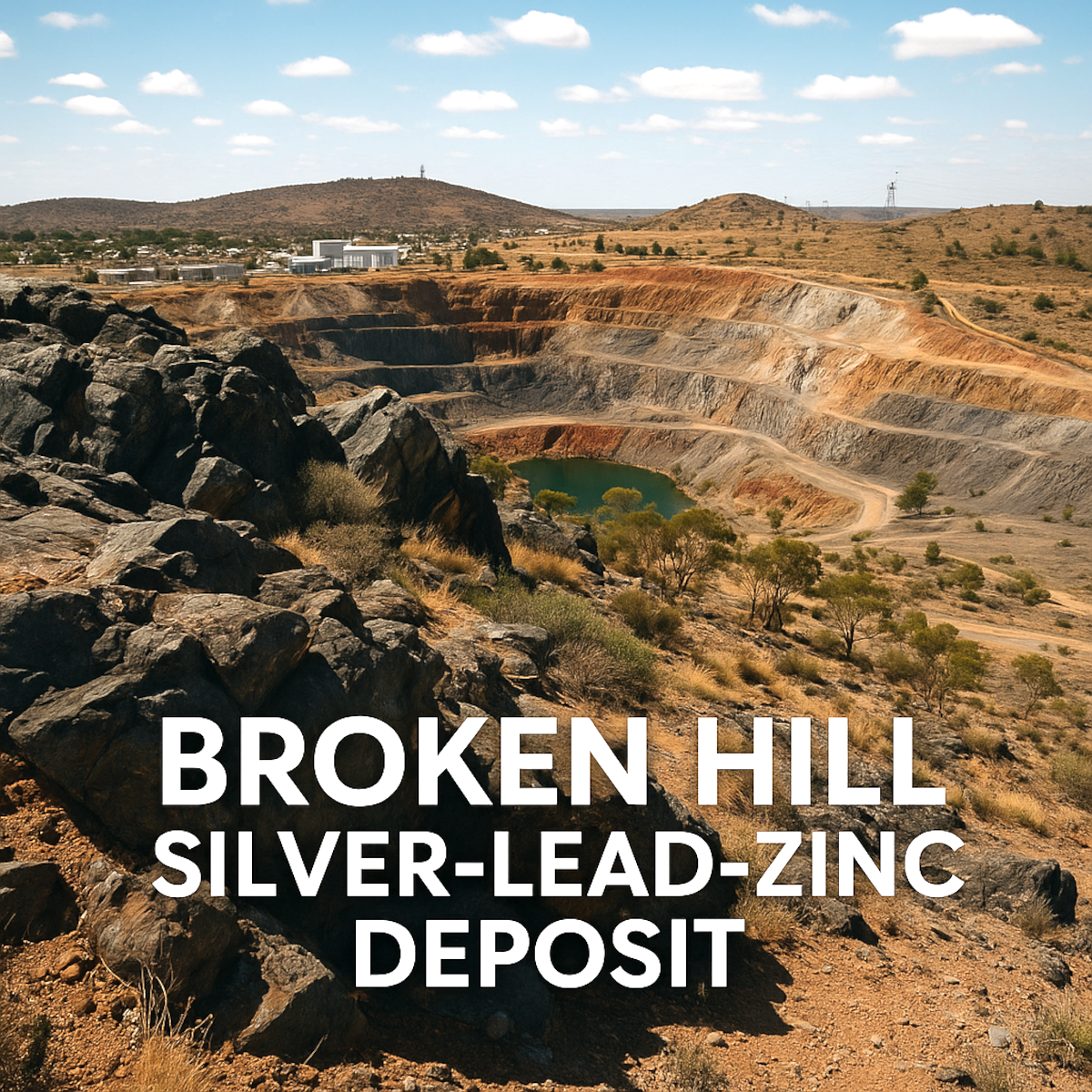

Broken Hill: Inside Australia’s Legendary Silver-Lead-Zinc Deposit

The Timeless Treasure of Broken Hill: A Billion-Year Journey Beneath the Earth

Beneath the arid plains of far western New South Wales, Australia, lies a treasure forged in the crucible of deep time. The Broken Hill deposit, the world’s largest accumulation of lead, zinc, and silver, is not merely a mineral deposit—it is the product of cataclysmic forces, ancient oceans, volcanic fire, and the wrenching break-up of one of Earth’s earliest supercontinents. To understand Broken Hill is to step back 1.7 billion years, into a world vastly different from today, a world of tectonic upheaval, volcanic outbursts, and primal seas brimming with the raw ingredients of life and industry.

The Birth of a Supercontinent: Nuna Awakens

The story of Broken Hill begins with the assembly of Nuna (Columbia), one of Earth’s first supercontinents, a vast landmass that brought together the cratons of North America, Siberia, and Australia in a tectonic embrace. Nuna formed between 2.0 and 1.8 billion years ago, a behemoth of rock and fire drifting across a nascent planet.

Yet even as Nuna coalesced, it was doomed to fracture. By 1.75–1.60 billion years ago, tectonic forces pulled at the seams of the supercontinent, stretching the crust like a great tectonic drumhead. Rifts yawned open, creating deep basins flooded by primordial seas. One such basin formed in what is now the Curnamona Province, a low-lying marine trough on the margins of Nuna, filled with sediment and bathed in volcanic heat.

This was the stage for the birth of the Broken Hill ores.

The Birth of the Broken Hill Ore Body (~1.71–1.69 Ga)

In the heart of the rifted basin, volcanic activity was rampant. Bimodal volcanism—both basaltic and rhyolitic—spewed magma into the waters, forming vast lava flows and underwater calderas. Along with this fiery upheaval came the slow, seeping breath of the deep Earth: hydrothermal vents, black smokers that exhaled metal-laden fluids into the seawater. These plumes carried lead, zinc, silver, and iron, which precipitated onto the seafloor, settling in fine, shimmering layers of sulfides.

This process—known as sedimentary exhalative (SEDEX) mineralization—is visually striking. Black smokers, towering hydrothermal chimneys, spewed superheated, mineral-rich fluids into the cold ocean water. As these fluids mixed with seawater, dissolved metals precipitated as fine-grained sulfides, which accumulated over time in layers, forming vast mineral-rich deposits. The seafloor in these zones would have been covered in shimmering black and gray sulfide sediments, interbedded with iron-rich cherts and carbonates. Occasionally, hydrothermal mounds would have formed, acting as localized metal traps where higher concentrations of lead and zinc developed.

However, while SEDEX processes played a major role in forming the Broken Hill deposit, it is not a pure SEDEX deposit. The mineralization has also been influenced by hydrothermal remobilization and metamorphic processes. The intense heat and pressure of subsequent tectonic events caused the original SEDEX sulfides to be deformed, recrystallized, and enriched in certain zones, leading to the formation of high-grade ore lenses. These metamorphic changes set Broken Hill apart from many classic SEDEX deposits, making it a hybrid system incorporating both exhalative and structurally controlled mineralization.

Additional evidence suggests that later hydrothermal fluids introduced new elements into the deposit, including gold, bismuth, and antimony. These late-stage fluids, likely activated during deformation events, altered parts of the orebody and contributed to further metal enrichment. This multi-stage history explains why Broken Hill remains one of the highest-grade base metal deposits in the world.

Volcanoes of Broken Hill: Guardians of Fire and Metal

The volcanic activity that fueled Broken Hill’s genesis was unlike the towering stratovolcanoes of today. Instead, the landscape would have been dominated by submarine shield volcanoes, fissure eruptions, and hydrothermal vent fields.

While these volcanoes did not form the deposit directly, they acted as conduits for metal-bearing fluids and sources of geothermal energy, driving the SEDEX mineralization process.

Metamorphic Rebirth: The Olarian Orogeny (~1.60–1.58 Ga)

For nearly a hundred million years, the Broken Hill sulfides lay buried beneath younger sediments, seemingly frozen in time. But geology is never still. Around 1.60–1.58 billion years ago, Nuna continued its slow, violent transformation. As ancient landmasses collided, the Curnamona Province was caught in a vise of pressure and heat. This was the Olarian Orogeny, a mountain-building event that would reshape the Broken Hill deposit forever.

The once-flat layers of sediment and sulfide were twisted, folded, and buried under the immense weight of colliding continents. Pressures reached staggering levels, and temperatures soared into the granulite facies, over 800°C, metamorphosing the sulfides into coarse-grained, banded ore bodies. Lead and zinc recrystallized into galena and sphalerite, while iron-rich layers transformed into garnet, gahnite, and quartz.

The deposit was no longer a simple SEDEX accumulation—it had been transformed into something new: a remobilized, high-grade lode deposit, its ores now concentrated into tightly folded, lens-shaped masses within the Broken Hill Group.

Survival Through the Eons

For over 1.5 billion years, the Broken Hill deposit has endured. It has been buried and unburied, shattered by faults, and warped by additional tectonic forces. Yet, through it all, the ore body has remained intact—a testament to the immense forces that forged it. Today, the deposit lies along the Moorkai Shear Zone, a fault system that has subtly reshaped its structure but failed to erase its riches.

Mining at Broken Hill began in the 1880s, revealing the incredible wealth locked within the ancient rocks. Even now, geologists continue to study its secrets, using modern exploration techniques to find similar deposits across Australia and the world.

A Legacy Written in Stone

Recent studies have revealed that the Broken Hill orebody exhibits unique isotopic signatures, distinguishing it from other SEDEX deposits worldwide. The presence of distinctive lead isotope ratios suggests that the metals originated from deep within the Earth's mantle, further supporting the role of early tectonic activity in driving hydrothermal circulation. These findings challenge previous models and provide new insights into the deposit's formation.

Additionally, geophysical investigations have identified concealed extensions of the orebody beneath younger cover sequences. Advanced seismic imaging and gravity surveys indicate that similar mineralized structures could remain hidden beneath thick layers of sediment, offering potential for future discoveries. These techniques continue to guide exploration efforts in the Curnamona Province and beyond.

The geological complexity of Broken Hill has also influenced the classification of related deposits globally. Some researchers argue that its extreme metamorphic overprint distinguishes it from conventional SEDEX deposits, positioning it within a unique category of high-grade metamorphosed mineral systems. This debate continues to shape our understanding of ancient ore-forming environments and the processes that create world-class mineral deposits.
