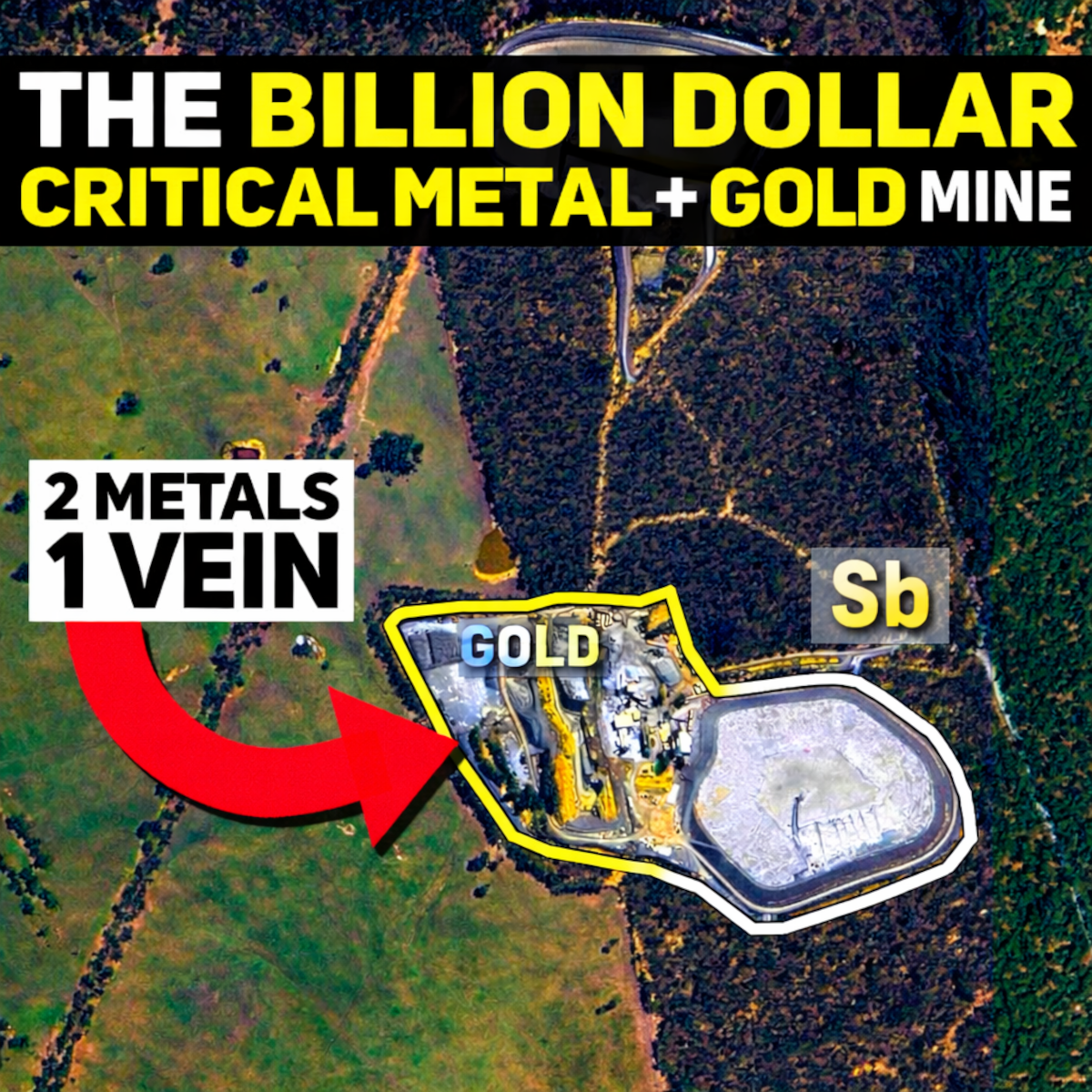

This Mine Shouldn’t Exist… But It’s Worth Billions: The Costerfield Mine

You can walk across it in seconds and never notice a thing.

Just dry paddocks outside Heathcote. Low hills. Scattered trees. Nothing that suggests anything unusual beneath your feet. No open pit. No skyline of machinery. No sign that anything of value is hidden below.

And yet beneath that quiet surface, something incredibly small has produced an extraordinary amount of wealth.

Over 500,000 ounces of gold. At today’s price of $6,814.07 AUD per ounce, that’s more than $3.4 billion AUD in gold alone. Add over 60,000 tonnes of antimony—worth roughly another billion dollars—and the total climbs beyond four billion dollars.

From veins often thinner than your arm.

That alone doesn’t make sense.

Because deposits that valuable aren’t supposed to be that small.

And the reason they are… is because the metals don’t belong there.

They were never meant to form in these rocks.

They were taken from them.

And the way they’re mined reflects that.

There’s no massive excavation at Costerfield. No bulk mining. No wide ore zones that can be scooped out in huge volumes. Instead, everything happens underground—quietly, precisely, and with almost surgical accuracy.

Miners don’t chase a big body of ore.

They chase lines.

Narrow, twisting veins that cut through the rock, sometimes only centimetres thick, rarely more than a metre or two. Tunnels are driven directly along these structures, following them as they bend, split, and reconnect through the subsurface.

In many places, the ore zone is barely wider than the equipment used to extract it.

Which means there’s no room for error.

Every metre of development has to stay on the vein. Drift too far into the surrounding rock, and the grade collapses. Stay on it, and you’re extracting material that can carry extraordinary value in a very small volume.

It’s not mining in the traditional sense.

It’s tracking.

Following a structure through the Earth, metre by metre, guided by subtle changes in mineralisation—quartz giving way to stibnite, arsenopyrite appearing in fractures, the signs that the system is approaching one of its richer zones.

Because even within the veins, the gold isn’t evenly distributed.

One section can be relatively barren.

Another—just metres away—can carry extremely high grades.

So the mine operates like a moving cross-section of the geology itself, constantly adapting, constantly following the structure as it reveals where the system concentrated its final pulse of metal.

And that raises a bigger question.

If the deposit is this narrow… this fragmented… this precise…

Why is it here at all?

To answer that, you have to go back hundreds of millions of years—long before the mine, before the landscape, before Victoria even existed in its current form.

Back when this region sat buried deep within the evolving Lachlan Orogen.

At the time, these rocks were part of an ancient marine basin. Layers of mud and silt settled quietly on the ocean floor, slowly building into thick sequences of sediment that would eventually become the siltstones and shales beneath Costerfield.

There was nothing unusual about them.

Just ordinary sedimentary rock.

But buried within those rocks were trace amounts of metals—gold, antimony, arsenic—locked inside minerals like pyrite.

At first, they stayed there.

But as the sediments were buried deeper into the crust, something began to change.

Heat increased. Pressure rose. Minerals that were stable at the surface became unstable at depth. And as they broke down, they released something critical.

Fluid.

Not surface water. Not groundwater.

But deep, metamorphic fluid—hot, pressurised, and chemically active. And within that fluid, dissolved invisibly, were the metals.

At this stage, there were no veins.

No gold deposits.

No concentrations.

Just metal-bearing fluid trapped deep underground, building pressure with nowhere to go.

For a long time, the system remained sealed.

The rocks above were folded and compressed, but not fractured in a way that allowed fluid to escape. The entire system sat in a kind of geological stalemate—pressure increasing, but no pathway available.

Until that balance broke.

The tectonic forces acting on the region shifted, linked to the broader collision of landmasses along the edge of Gondwana. That shift didn’t just deform the crust—it reorganized it.

Existing structures were reactivated.

New ones formed.

And most importantly, steep strike-slip faults cut upward through the sedimentary sequence, slicing through the rock and creating zones of weakness.

And under the right conditions, weakness becomes permeability.

At depth, fluid pressure eventually exceeded the strength of the surrounding rock.

And when that happened, the system didn’t adjust gradually.

It failed.

Fractures opened suddenly, linking deep fluid reservoirs to the upper crust.

And through those fractures, something was forced upward.

Not slowly.

Not diffusely.

But in short, violent bursts.

The veins at Costerfield weren’t slowly filled over time.

They were injected.

That’s why they’re described as “dyke-like.” Not because they’re igneous, but because they formed through the same fundamental process—pressure forcing material into fractures as the rock opened.

The first material to arrive built the framework.

Quartz flooded into the fractures, lining them and forming the initial veins. But the system didn’t stabilize. The faults continued to move. The fractures sealed, then reopened again.

Each time they did, another pulse surged through.

Fracture.

Fill.

Seal.

Reopen.

Over and over again.

Inside the veins, that history is still visible. Quartz grains stretched and broken, then cemented back together. Breccias frozen mid-collapse. Crystals growing into open space, pointing in random directions—evidence that cavities once existed and were rapidly filled.

It’s not the signature of a calm system.

It’s the record of something unstable.

Something pulsing.

And as it pulsed, it changed.

The chemistry of the fluid evolved over time. Early pulses were dominated by silica, producing quartz-rich veins. But as temperature dropped and conditions shifted, a new phase began to dominate.

Antimony.

It didn’t just enter the system.

It rewrote it.

Stibnite, the primary antimony mineral, began to grow through the earlier quartz. It replaced it. Overprinted it. Transformed sections of the veins into dense, metallic zones that were chemically distinct from what had come before.

In some lodes, the original quartz is barely recognizable.

The system had built something—

and then replaced it.

But even then, it wasn’t finished.

Because the gold—the element that ultimately defines the value of the deposit—had not yet fully arrived.

After the main veins had formed, after the stibnite had overprinted much of the quartz, the system fractured again.

But this time, the fractures were smaller.

Tighter.

Cutting across everything that had come before.

And through those fractures came the final pulse.

Gold.

Not spread evenly.

Not forming broad zones.

But concentrated into specific domains—tiny pockets associated with arsenopyrite, forming late in the system and overprinting the earlier mineralisation.

This is why the deposit behaves the way it does.

Why one section of a vein can be nearly barren, while another—just metres away—can carry extremely high grades.

Because the gold didn’t define the system.

It finished it.

And all of it—every stage—was controlled by structure.

At depth, fluids rose along major faults connected to deeper parts of the crust. These acted as primary conduits, channeling metal-rich fluid upward from the source region. Higher up, the fluids transferred into sub-vertical strike-slip splays, which carried them into the upper crust where the veins formed.

Each lode represents one of these pathways.

A fracture that opened at exactly the right moment, allowing fluid to enter, deposit its load, and then seal again.

To produce the amount of metal seen at Costerfield required enormous volumes of fluid—on the order of a cubic kilometre moving through the system.

But instead of dispersing, that fluid was focused.

Repeatedly.

Into the same narrow structures.

That focus is what made the deposit possible.

The veins themselves are small—often just centimetres to tens of centimetres wide, occasionally reaching up to a couple of metres. Yet they can extend for over a kilometre along strike, forming a swarm of narrow, dyke-like lodes threading through otherwise ordinary rock.

Individually, they’re easy to overlook.

Collectively, they represent one of the most efficient metal concentration systems in the crust.

And when the system shut down—when pressure dropped, fractures sealed, and fluid flow ceased—it left behind exactly what we see today.

A network of narrow veins, hidden beneath an otherwise ordinary landscape.

No obvious surface expression.

No dramatic exposure.

Just a quiet field above a system that once moved metal through the crust in violent, pressurised bursts—concentrating billions of dollars’ worth of material into structures so small they almost disappear.

And that’s what makes Costerfield so compelling.

Not just what it contains.

But how precisely—and how briefly—the Earth had to work to put it there.
